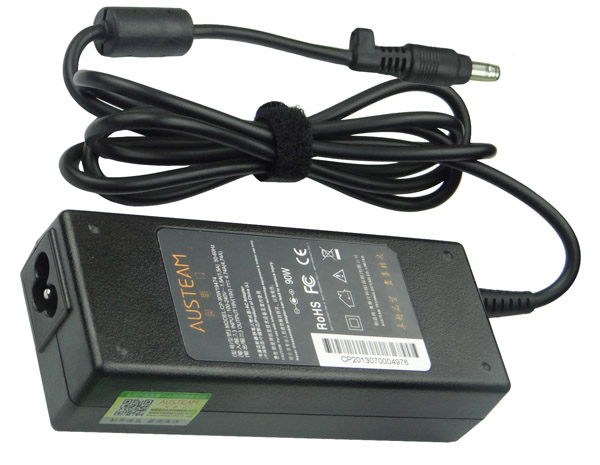

惠普/康柏 19V 4.74A 4.8*1.7mm&子弹头

  • Features
  • Specification
  • Application
  • Typical models
  • Download

型    号：CP090-H12
更新日期：2013.08.26
输入电压：AC90-264V 50/60HZ
输出电压：DC 19V
输出电流：4.74A
最大功率：90W
输出接头：Φ4.8*1.7mm&子弹头

效率：90%
输入AC接头：3pin
产品颜色：黑
规格尺寸：124*51*30mm
重量：362G
贮存温度：-15~50℃
工作温度：0~40℃
过压保护：有
过流保护：有
短路保护：有
过功率保护：有
制造厂家：深圳华巴源能科技有限公司& 奥斯汀科技（深圳）有限公司



Replacement For

HP/Compaq 393945-001,239428-001,239705-001,324815-001,239428-002,
310744-002,287515-001,394224-001,PPP009H,PPP012H,PPP012L,PA-1900-05C1


Fit Machine Models

HP Pavilion DV6000 Seires,

HP Pavilion DV8000 Seires:
DV8000,DV8005,DV8010,DV8013,DV8026EA,DV8040,DV8080,DV8100,DV8110,DV8120,DV8130,DV8200,
DV8210,DV8230,DV8230CA,DV8240,DV8240US,DV8290,DV8290EA,DV8310,DV8320,DV8370,DV8400,DV8408,

HP Pavilion DV9000 Seires:
DV9000,DV9000EA,DV9000T,DV9000Z,DV9010,DV9010CA,DV9010EA,DV9010TX,DV9010US,DV9020,DV9020TX,
DV9020XX,DV9030,DV9040,DV9050,DV9050EA,DV9060EA,DV9060US,DV9070,DV9080,DV9085,DV9090,DV9095,

HP Compaq 6820s Notebook PC,
HP Compaq 6520s Notebook PC,
HP Compaq Business Notebook NC8230,NC8430,
