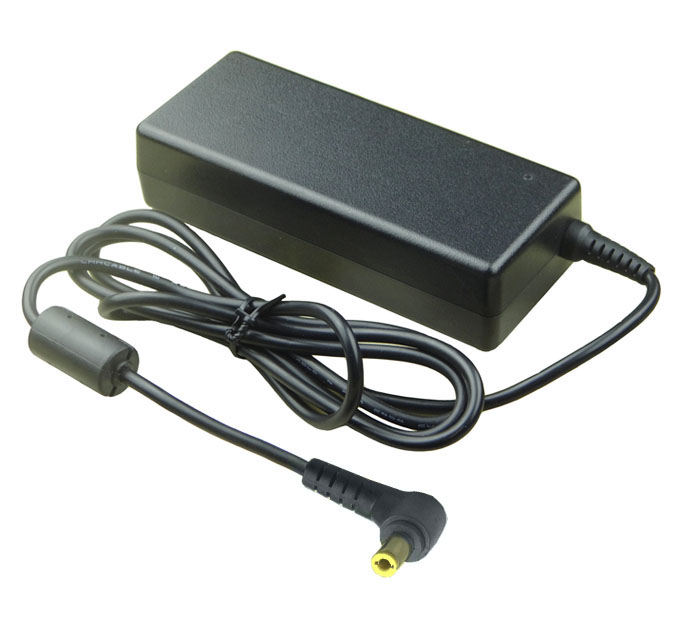

惠普/康柏 19V 4.74A 5.5*2.5mm

  • Features
  • Specification
  • Application
  • Typical models
  • Download

型    号：CP090-H13
更新日期：2013.08.26
输入电压：AC90-264V 50/60HZ
输出电压：DC 19V
输出电流：4.74A
最大功率：90W
输出接头：Φ5.5×Φ2.5mm
效率：90%
输入AC接头：3pin
产品颜色：黑
规格尺寸：124*51*30mm
重量：362G
贮存温度：-15~50℃
工作温度：0~40℃
过压保护：有
过流保护：有
短路保护：有
过功率保护：有
制造厂家：深圳华巴源能科技有限公司& 奥斯汀科技（深圳）有限公司

Replacement For

For HP

CQPS1200                              AC-C10                            ADP-75FB                         F1377A

F4814A                                  F1781A                            F1454A                            309241-001

308745-001                            310925-001                      298239-001                     222113-001

198713-001                            180676-001                      177626-001                     247051-001

247050-001                            246437-002                      246437-001                     196345-B22

Dell PA-1600-06D1                   F9710

HP/Compaq P/N:                      F4600A                             F4813A                           F5104A

ACCOM-C16

HP-OL091B13                          324816-001                      324816-002                      324816-003

325112-001                            325112-021                      310744-002                      287515-001

286755-001                            283884-001                       239428-002


Fit Machine Models

F5856H            F5871HR                    F5871H              F5543HR                     F5543H               F5554HR

F5554H            F5541HR                    F5541H              F5548HR                     F5548H               F3397HR

F3397H            F3400HR                    F3400H              F5540HR                     F5540H               F3451HR

F3451H            F3414HR                    F3414H              F5421HR                     F5421H               F5422HR

F5422H            F5398HR                    F5398H              F5399HR                     F5399H               F5400HR

F5400H            F5695AV                    F4902HR            F4902H                       F5859HR             F5859H

F5874H            F5872H                      F5873HR            F5873H                       F4903HR             F4903H

F5869HR          F5869H                      F5878HG            F5879HG                     F4892HR             F4892H

F5870HR          F5870H                      F5875HR            F5875H                       F5868H               F4893HR

F4893H            zt1000-IC

BTCO Base Unit:

F5097AV          F5098AV                   zt1000-ID

BTCO Base Unit:

F5100AV          F5484AV                   F3398HR              F3398H                       F3437H               F3394HR

F3394H            F3438H                     F3399HR              F3399H                        F3439H              F3395HR

F3395H
